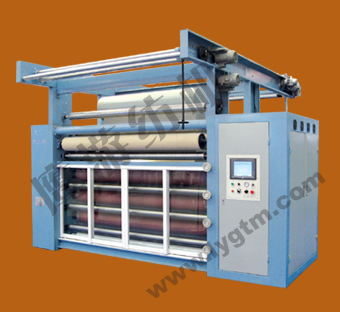

機器特點
        1、結構緊湊，除塵效果好，操作維護方便。

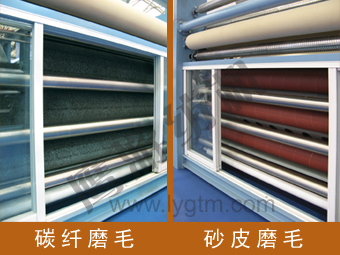

        2、砂皮、碳纖六輥組合磨毛，磨輥裝置次序可以任意互換，以滿足不同織物和不同的效果。

FEATURES OF THE MACHINE
        1、Compact structure, good suction effection, convenient  maintenace.
        2、Free combination of emering paper and carbon-brushing rollers is
               more suitable for sueding requirement.
               Different fabric with different process effection.

FEATURES OF THE MACHINE

產品用途及主要技術參數
         1、用于麂皮、棉、化纖等織物的磨毛。
         2、幅寬：1800mm   2000mm   2200mm
         3、生產速度：5~30m/min
         4、碳刷磨毛輥直徑：φ280mm
         5、砂皮磨毛輥直徑：φ215mm
         6、磨毛輥轉速：500~1500rpm
         7、裝機功率：40.05KW（不含風機）
         8、機器重量：約5000Kg
         9、機器外形尺寸：（長×寬×高）4000×3750×2905(mm)（2000mm幅寬）

USES AND MAIN TECHNICAL PARAMETERS
         1、Mainly use for soft sueding of sueding fabric, cotton and chemical fibre etc.
         2、Working width: 1800mm   2000mm   2200mm
         3、Working speed: 5~30m/min
         4、Diameter of carbon-fibre sueding roller:φ280mm
         5、Diameter of sueding sueding roller: φ215mm
         6、Rotary speed of sueding roller: 500~1500 rpm
         7、Total motor power: 40.05KW (suction is not included)
         8、Weight of the machine: about 5000Kg

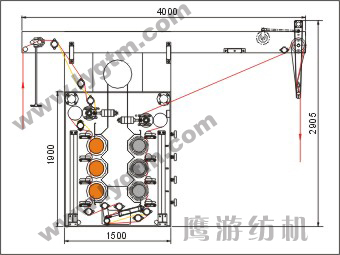

         9、Overall dimension ( length * width * height): 4000 * 3750 * 2905(mm) (working width 2000mm)
