三菱PLC ANS/QNS系列
發布時間：2012-06-14
.jpg)

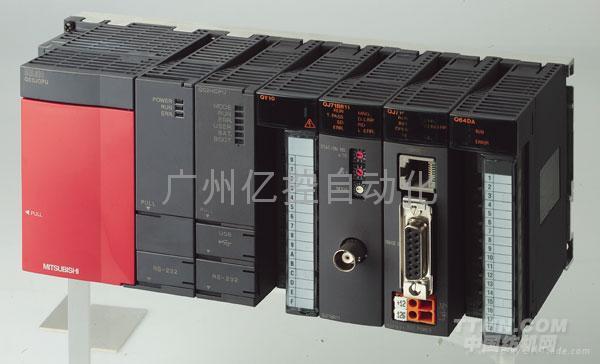

三菱PLC ANS/QNS系列
產品描述
產品特點:
● 節省空間：其體積僅相當于以前ANS系列PLC的60%
● 節省配線：優越的模塊插口設置可節省配線時間和空間
● 安裝靈活：有多種主基板和擴展基板供選擇
● 強大的網絡功能：相比前產品更為支持CC-LINK，在軟件GX-Developer的設置下，可以方便地使用CC-LINK模塊，減小編程時間。并且支持MODBUS，Profibus，DeviceNet，ASi，太網等等。
● 高性能模塊：提供有多種特殊功能模塊，功能更為強大。并且有相關設置軟件，編程及調試更加方便
CPU分類：
基本模式（Q00JCPU，Q00CPU及Q01CPU）
● 支持的I/O點數為1024點（Q00JCPU為256點）
● Q00JCPU是一個由CPU、電源和主基板(5槽)組成的CPU單元。(電源模塊設計為100V-240V)Q00CPU和Q01CPU是獨立的CPU模塊。
● Q-CPU的程序效率（程序長度）為A系列的2倍
● 件元件的存儲器為19K字，允許軟元件在16K字范圍內任意分配。此外，Q00／Q01CPU將RAM用做文件寄存器的標準RAM。文件寄存器含有32K字，能處理大容量的數據。
● QCPU基本模式都含有閃存ROM。標準的CPU能在不使用存儲卡的情況下執行ROM操作。
● Q00／Q01CPU基本模式具有串行通訊功能。CPU的RS-232接口能與使用MC通訊協議的外部設備進行通訊。此功能使CPU不再需要串行通訊模塊，降低了成本。
● 由于具有自動CC-Link啟動功能，您可以在不設定參數的情況下啟動CC-Link、刷新數據，減少了人工設定參數的時間。
● Q PLC編程更簡單，特殊功能模塊有專門的設定軟件，無需向A系列PLC那樣用FROM/TO指令編程
● Q基本模式版本B后支持浮點運算、8路PID、標準RAM增加到128K，支持ST（結構化文本，類高級語言）、SFC、FB編程
高性能模式（Q02CPU，Q02HCPU,Q06HCPU,Q12HCPU,Q25HCPU）
● 支持的本地I/O達4096點，最快指令僅34納秒
● 程序容量從28K-252K步（1步=4byte）
● 支持結構化編程，最大程序數量為252個，每個程序克設定為掃描、低速、等待，且可互相切換
● 內置標準RAM及ROM，文件寄存器數量128K，且可擴展到1M
● 具有12M USB及115K RS232編程接口（Q02只有RS232編程口）
● 內部軟元件約30K，可自由設定
● 支持多達4個CPU，一個系統中可集成順控CPU、過程控制CPU、運動控制CPU（最大96軸）、PC CPU
● 支持100M以太網，另有WEB SERVER模塊，可用瀏覽器通過INTRANET、INTERNET監控PLC，進行程序監控、讀寫等遠程維護功能
● 高可靠10M/25M MELSECNET/H光纖雙環網，通訊距離達30KM，同時支持總線型同軸電纜MELSECNET/H網絡，最遠距離2500米
● 除支持開放式現場總線CC-LINK外，還支持主要的工業網絡，如Profibus,DeviceNet,Modbus,ASi等
● 各種智能模塊、功能模塊，滿足各種從簡單到復雜的應用，如BASIC模塊，支持BASIC語言，很容易寫通訊程序過程控制CPU
● Q12PHCPU/Q25PHCPU兩種CPU
● 52種控制算法，自整定PID，可取代DCS
● 全新的編程軟件PX-DEVELOPER，完全功能塊編程（類似DCS組太），且可與梯形圖結合
● 高速的回路控制（10MS），回路數量無限制（僅受內存限制，一般可達200個）
● 具有高性能Q CPU的全部性能
● 通道間隔離的高精度的模擬量處理模塊
● 在線模塊更換功能
冗余CPU
● Q12PRHCPU/Q25PRHCPU兩種CPU
● 具有過程控制CPU的全部功能
● 冗余電源、冗余網絡、冗余CPU
● 使用簡單，雙CPU自動同步
● 以太網、MELSECNET/H、CPU、電源的故障都會進行自動切換，切換時間僅40MS
| 型 號 | 說 明 | 面 價 |
| CPU模塊 | ||
| A1SHCPU | CPU, BUILT IN 8KSTEPS RAM, MAX. I/O 256 | 4010 |
| A2SHCPU | CPU, BUILT IN 14KSTEPS RAM, MAX. I/O 512 | 5840 |
| A2SHCPU-S1 | CPU, BUILT IN 14KSTEPS RAM, MAX. I/O 1024 | 6420 |
| A2ASCPU | CPU, BUILT IN 14KSTEPS RAM, MAX. I/O 512, 0.2us/STEP | 7820 |
| A2ASCPU-S1 | CPU, BUILT IN 14KSTEPS RAM, MAX. I/O 1024, 0.2us/STEP | 9390 |
| A2USHCPU-S1 | CPU, BUILT IN 30KSTEPS RAM, MAX. I/O 1024, 0.09us/STEP | 9390 |
| A2ASCPU-S60 | CPU, BUILT IN 30KSTEPS RAM, MAX. I/O 1024, 0.15us/STEP | 20140 |
| A1SCPUC24-R2 | CPU, BUILT IN 8KSTEPS RAM, MAX. I/O 256, RS232 PORT | 7730 |
| A1SJHCPU | CPU, BUILT IN 8KSTEPS RAM, MAX. I/O 256, 5 I/O SLOTS | 3940 |
| A1SJHCPU-S8 | CPU, BUILT IN 8KSTEPS RAM, MAX. I/O 256, 8 I/O SLOTS | 4460 |
| 主基板與擴展基板 | ||
| A1S32B | BASE UNIT: CPU, 2 I/O & POWER SUPPLY SLOTS | 1000 |
| A1S33B | BASE UNIT: CPU, 3 I/O & POWER SUPPLY SLOTS | 1080 |
| A1S35B | BASE UNIT: CPU, 5 I/O & POWER SUPPLY SLOTS | 1100 |
| A1S38B | BASE UNIT: CPU, 8 I/O & POWER SUPPLY SLOTS | 1660 |
| A1S52B-S1 | EXTENSION UNIT : 2 I/O SLOTS | 950 |
| A1S55B-S1 | EXTENSION UNIT : 5 I/O SLOTS | 1060 |
| A1S58B-S1 | EXTENSION UNIT : 8 I/O SLOTS | 1560 |
| A1S65B-S1 | EXTENSION UNIT : 5 I/O, POWER SUPPLY SLOTS | 1170 |
| A1S68B-S1 | EXTENSION UNIT : 8 I/O, POWER SUPPLY SLOTS | 1720 |
| 存儲卡 | ||
| A1SNMCA-8KP | MEMORY CASSETTE : 8K STEP EPROM | 860 |
| A1SNMCA-2KE | MEMORY CASSETTE : 2K STEP EEPROM | 1020 |
| A1SNMCA-8KE | MEMORY CASSETTE : 8K STEP EEPROM | 2030 |
| A2SMCA-14KP | MEMORY CASSETTE : 14K STEP EPROM | 1170 |
| A2SNMCA-30KE | MEMORY CASSETTE : 30K STEP EERPOM | 2180 |
| A2SMCA-30KP | MEMORY CASSETTE : 30K STEP EPROM | 1540 |
| A2SMCA-60KE | MEMORY CASSETTE : 60K STEP EEPROM | 3080 |
| 電源模塊 | ||
| A1S61PN | INPUT : AC 100 - 240VAC OUTPUT : DC 5V 8A | 1560 |
| A1S62PN | INPUT : AC 100 - 220VAC OUTPUT : DC 5V 5A, DC 24V 0.8A | 1790 |
| A1S63P | INPUT : DC 24V OUTPUT : DC 5V 8A | 2710 |
| -[BLANK AND DUMMY I/O MODULES] | ||
| A1SG60 | BLANK COVER | 160 |
| A1SG62 | DUMMY I/O MODULE, 16/32/64 SELECTABLE | 1140 |
| 輸入模塊 | ||
| A1SX10 | 16 PT. AC 100V | 1560 |
| A1SX20 | 16 PT. AC 200V | 2100 |
| A1SX30 | 16 PT. AC 24V OR DC 24V | 1520 |
| A1SX40 | 16 PT. DC 12/24V, SINK INPUT | 1480 |
| A1SX40-S1 | 16 PT. DC 24V, SINK INPUT, FAST RESPONSE | 1560 |
| A1SX40-S2 | 16 PT. DC 24V, SINK INPUT | 1480 |
| A1SX41 | 32 PT. DC 12/24V, SINK INPUT | 2560 |
| A1SX41-S1 | 32 PT. DC 24V, SINK INPUT, FAST RESPONSE | 2870 |
| A1SX41-S2 | 32 PT. DC 24V, SINK INPUT | 2560 |
| A1SX42 | 64 PT. DC 12/24V, SINK INPUT | 4120 |
| A1SX42-S1 | 64 PT. DC 24V, SINK INPUT, FAST RESPONSE | 4620 |
| A1SX42-S2 | 64 PT. DC 24V, SINK INPUT | 4120 |
| A1S42X | 64 PT. DYNAMIC INPUT | 3050 |
| A1SX71 | 32 PT. DC 5/12V, SINK/SOURCE INPUT | 2790 |
| A1SX80 | 16 PT. DC 12/24V, SINK/SOURCE INPUT | 1880 |
| A1SX80-S1 | 16 PT. DC 24V, SINK/SOURCE IN (HIGH SPEED) | 1880 |
| A1SX80-S2 | 16 PT. DC 24V, SINK/SOURCE INPUT | 1880 |
| A1SX81 | 32 PT. DC 12/24V, SINK/SOURCE INPUT | 3190 |
| A1SX81-S2 | 32 PT. DC 24V, SINK/SOURCE INPUT | 3190 |
| A1SX10EU | 16 PTS. AC 100V, EN/IEC STANDARD | 1750 |
| A1SX20EU | 16 PTS. AC 200V, EN/IEC STANDARD | 2210 |
| 輸入模塊 | ||
| A1SY10 | 16 PT. AC 240V/DC 24V, 2A, RELAY | 2030 |
| A1SY18A | 8 PT. AC 240V/DC 24V 2A, RELAY, INDEPENDENT COMMON | 1880 |
| A1SY22 | 16 PT. AC 240V 0.6A, TRIAC/SSR | 2490 |
| A1SY28A | 8 PT. AC 24V 1A, TRIAC/SSR, INDEPENDENT COMMON | 2180 |
| A1SY40 | 16 PT. DC 12/24V 0.1A, TRANSISTOR SINK | 1480 |
| A1SY41 | 32 PT. DC 12/24V 0.1A, TRANSISTOR SINK | 2560 |
| A1SY42 | 64 PT. DC 12/24V 0.1A, TRANSISTOR SINK | 4120 |
| A1SY50 | 16 PT. DC 12/24V 0.5A, TRANSISTOR SINK | 1560 |
| A1SY60 | 16 PT. DC 24V 2A, TRANSISTOR SINK | 3100 |
| A1SY68A | 8 PT. DC 5/12/24/48V 2A, TRANSISTOR SINK/SOURCE | 2180 |
| A1SY71 | 32 PT. DC 5/12V 16mA, TRANSISTOR SINK | 2560 |
| A1SY80 | 16 PT. DC 12/24V 16mA, TRANSISTOR SOURCE | 2030 |
| A1SY81 | 32 PT. DC 12/24V 0.1A, TRANSISTOR SOURCE | 3510 |
| A1SY10EU | 16 PT. AC 240V/DC 24V 2A, RELAY, EN/IEC STANDARD | 2210 |
| A1SY14EU | 12 PT. AC 240V/DC 24V 2A, RELAY, EN/IEC STANDARD | 2210 |
| A1SY18AEU | 8 PT. AC 240VDC 24V 2A, RELAY, EN/IEC STANDARD | 1980 |
| A1SY28EU | 8 PT. AC 240V 1A, TRIAC/SSR, EN/IEC STANDARD | 2420 |
| A1SH42 | DC 12/24V : 32 PT. SINK INPUT ; 32 PT. SINK TRANSISTOR OUTPUT | 4120 |
| A1SX48Y18 | 8 PT. DC 12/24V SINK INPUT ; 8 PT. RELAY OUTPUT | 1960 |
| A1SX48Y58 | 8 PT. DC 12/24V SINK INPUT ; 8 PT. SINK TRANSISTOR OUTPUT | 1320 |
| 模擬量模塊 | ||
| A1S63ADA | A/D, D/A CONVERTER : 2 INPUT/1 OUTPUT, 4-20mA, OR -10V-+10V | 4690 |
| A1S66ADA | A/D, D/A CONVERTER : 4 INPUT/2 OUTPUT, 4-20mA, OR -10V-+10V | 8160 |
| A1S64AD | A/D CONVERTER : 4 CH., 4-20mA, OR -10V-+10V | 4240 |
| A1S68AD | A/D CONVERTER : 8 CH., 0-20mA, OR -10V-+10V | 6480 |
| A1S62DA | D/A CONVERTER : 2 CH., 4-20mA, OR -10V-+10V | 4990 |
| A1S68DAI | D/A CONVERTER UNIT : 8 CH., 4-20mA | 8430 |
| A1S68DAV | D/A CONVERTER UNIT : 8 CH., -10V-+10V | 8430 |
| A1ST60 | 8 ANALOG TIMERS | 2180 |
| 溫度模塊 | ||
| A1S68TD | THERMOCOUPLE INPUT : 8 CH., B, R, S, E, J, K TYPE | 12110 |
| A1S62RD3N | TEMPERATURE SENSOR : PT-100, 3 WIRES | 5940 |
| A1S62RD4N | TEMPERATURE SENSOR : PT-100, 4 WIRES | 5940 |
| A1S64TCTT-S1 | THERMOCOUPLE R,K,J,T,I/P,TRANSISTOR O/P, 4 CHANNEL | 8020 |
| A1S64TCTTBW-S1 | 3-WIRE PT-100 I/P, TRANSISTOR O/P, 4 CHANNELS | 10430 |
| A1S64TCRT-S1 | THERMOCOUPLE R,K,J,T,I/P,TRANSISTOR O/P, 4 CHANNEL | 8020 |
| A1S64TCRTBW-S1 | 3-WIRE PT-100 I/P, TRANSISTOR O/P, 4 CHANNELS | 10430 |
| 定位模塊 | ||
| A1SD70 | 1 AXES, VOLTAGE OUTPUT | 7820 |
| A1SD71-S2 | 2 AXIS, PULSE TRAIN, OUTPUT, SPEED CONTROL FUNCTION | 13980 |
| A1SD71-S6 | 2 AXIS, PULSE TRAIN OUTPUT | 14530 |
| A1SD71-S7 | 2 AXIS, PULSE TRAIN OUTPUT, MANUAL PULSAR INPUT | 13980 |
| A1SD75P1-S3 | 1 AXES, PULSE TRAIN OUTPUT | 7270 |
| A1SD75P2-S3 | 2 AXIS, PULSE TRAIN OUTPUT | 11000 |
| A1SD75P3-S3 | 3 AXIS, PULSE TRAIN OUTPUT | 15420 |
| A1SD75-C01H | CONNECTION CABLE BETWEEN A1SD75 & AD75TU | 880 |
| A1SP60 | PULSE CATCH MODULE | 2330 |
| A1SD75M1 | SSC NET, 1ASIS | 6830 |
| A1SD75M2 | SSC NET, 2ASIS | 10430 |
| A1SD75M3 | SSC NET, 3ASIS | 14450 |
| AD75TU | AD75 TEACHING PANEL | 7550 |
| 高速模塊 | ||
| A1SD61 | HIGH SPEED COUNTER, 1 CH., 50KPPS | 6210 |
| A1SD62 | HIGH SPEED COUNTER, 2 CH., 100KPPS, SINK | 6380 |
| A1SD62E | HIGH SPEED COUNTER, 2 CH., 100KPPS, SOURCE | 6380 |
| A1SD62D | HIGH SPEED COUNTER, 2 CH., 200KPPS, SINK | 6830 |
| A1SI61 | 16 PT. INTERRUPT MODULE | 3100 |
| -[MELESEC I/O LINK UNIT] | ||
| A1SJ51T64 | MELSECNET I/O LINK MASTER, 64 REMOTE I/O CONTROL | 1940 |
| AJ55TB3-4D | REMOTE INPUT, 4 PTS, DC24V | 1700 |
| AJ55TB3-8D | REMOTE INPUT, 8 PTS, DC24V | 1940 |
| AJ55TB3-16D | REMOTE INPUT, 16 PTS, DC24V | 2870 |
| AJ55TB2-4T | REMOTE OUTPUT, 4 PTS, TRANSISTOR(SINK), DC24V 0.5A/PT. | 1790 |
| AJ55TB2-8T | REMOTE OUTPUT, 8 PTS, TRANSISTOR(SINK), DC24V 0.5A/PT. | 2010 |
| AJ55TB2-16T | REMOTE OUTPUT, 16 PTS, TRANSISTOR(SINK), DC24V 0.5A/PT. | 2870 |
| AJ55TB2-4R | REMOTE OUTPUT, 4 PTS, RELAY, AC240V 2A/PT. | 1850 |
| AJ55TB2-8R | REMOTE OUTPUT, 8 PTS, RELAY, AC240V 2A/PT. | 2160 |
| AJ55TB2-16R | REMOTE OUTPUT, 16 PTS, RELAY, AC240V 2A/PT. | 3530 |
| AJ55TB32-4DT | INPUT 2 PTS, DC24V / OUTPUT 2 PTS, TRAN.(SINK) DC24V 0.5A/PT. | 1850 |
| AJ55TB32-8DT | INPUT 4 PTS, DC24V / OUTPUT 4 PTS, TRAN.(SINK) DC24V 0.5A/PT. | 1940 |
| AJ55TB32-16DT | INPUT 8 PTS, DC24V / OUTPUT 8 PTS, TRAN.(SINK) DC24V 0.5A/PT. | 2870 |
| AJ55TB32-4DR | INPUT 2 PTS, DC24V / OUTPUT 2 PTS, RELAY AC240V 2A/PT. | 1790 |
| AJ55TB32-8DR | INPUT 4 PTS, DC24V / OUTPUT 4 PTS, RELAY AC240V 2A/PT. | 2010 |
| AJ55TB32-16DR | INPUT 8 PTS, DC24V / OUTPUT 8 PTS, RELAY AC240V 2A/PT. | 3080 |
| -[DEVELOPMENT TOOLS] | ||
| A6WA-28P | READ/WRITE ADAPTER FOR A1SMCA-8KP | 420 |
| A2SWA-28P | READ/WRITE ADAPTER FOR A2SMCA-14KP | 620 |
| A7PUS | HANDY PROGRAMMER FOR AnS | 5260 |
| AC30R4-PUS | A7PU CABLE, 3 M LONG | 1660 |
| A6BAT | BATTERY FOR MEMORY BACKUP | 340 |
| 擴展電纜 | ||
| A1SC01B | 55 mm EXTENSION CABLE | 360 |
| A1SC03B | 300 mm EXTENSION CABLE | 420 |
| A1SC60B | 6 M EXTENSION CABLE | 2140 |
| A1SC05NB | 450 mm CABLE CONNECTS TO AnN EXTENSION BASE & GOT | 660 |
| A1SC07NB | 700 mm CABLE CONNECTS TO AnN EXTENSION BASE & GOT | 780 |
| A1SC30NB | 3 M CABLE CONNECTS TO AnN EXTENSION BASE & GOT | 1980 |
| A1SC50NB | 5 M CABLE CONNECTS TO AnN EXTENSION BASE & GOT | 2650 |
| -[TERMINAL UNIT] | ||
| A6TE2-16SRN | 16 PTS, RELAY OUTPUT UNIT, APPLICABLE TO A1SY41/42 | 1620 |
| AC06TE | 0.6 M CABLE FOR A6TE2-16SR | 460 |
| AC10TE | 1 M CABLE FOR A6TE2-16SR | 440 |
| AC30TE | 3 M CABLE FOR A6TE2-16SR | 660 |
| AC50TE | 5 M CABLE FOR A6TE2-16SR | 660 |
| AC100TE | 10 M CABLE FOR A6TE2-16SR | 1100 |
| -[TERMINAL ADAPTER] | ||
| A1STA32 | 32 PTS, AWG 20 (0.5mm2), FOR A1SX41/42-S2/71, A1SY41/71 | 560 |
| A1STA32-3 | 32 PTS, AWG 22 (0.3mm2), FOR A1SX41/42-S2/71, A1SY41/71 | 560 |
| A1STA32-7 | 32 PTS, AWG 18 (0.7mm2), FOR A1SX41/42-S2/71, A1SY41/71 | 560 |
| -[CONNECTOR/TERMINAL CONVERTER] | ||
| A6TBXY36 | 36 PTS, SINK, APPLICABLE TO A1SX41/42 & A1SY41/42 | 580 |
| A6TBXY54 | 54 PTS, SINK, APPLICABLE TO A1SX41/42 & A1SY41/42 | 750 |
| A6TBX70 | 70 PTS, SINK INPUT, APPLICABLE TO A1SX41/42 | 890 |
| A6TBX36-E | 36 PTS, SOURCE INPUT, APPLICABLE TO A1SX81 | 580 |
| A6TBY36-E | 36 PTS, SOURCE OUTPUT, APPLICABLE TO A1SY81 | 580 |
| A6TBX54-E | 54 PTS, SOURCE INPUT, APPLICABLE TO A1SX81 | 750 |
| A6TBY54-E | 54 PTS, SOURCE OUTPUT, APPLICABLE TO A1SY81 | 750 |
| A6TBX70-E | 70 PTS, SOURCE INPUT, APPLICABLE TO A1SX81 | 890 |
| AC05TB | 0.5 M CABLE, SINK TYPE, APPLICABLE TO A6TB( ) | 500 |
| AC10TB | 1 M CABLE, SINK TYPE, APPLICABLE TO A6TB( ) | 530 |
| AC20TB | 2 M CABLE, SINK TYPE, APPLICABLE TO A6TB( ) | 580 |
| AC30TB | 3 M CABLE, SINK TYPE, APPLICABLE TO A6TB( ) | 640 |
| AC50TB | 5 M CABLE, SINK TYPE, APPLICABLE TO A6TB( ) | 750 |
主要市場︰ 機械加工，水處理，紡織，化工
