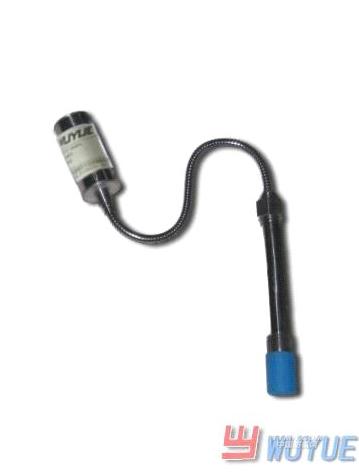

PT127B melt pressure transmitter
發布時間：2013-08-05
Parameters:
PT127B rigidity high accuracy pressure transmitter, mainly ask for high accuracy measuring various condition. This product adopts special structure and alloy elastic diaphragm to decrease the temperature drift, increase the accuracy. The parameter has reached the international similar product. Zero and full scale can be changed ,signal directly brings in PLC. 80% interior calibration. Mainly used in measuring and controlling chemical fiber spinning, polyester and other equipment that needs melt flow medium bring in.
Feature:
High accuracy, stainless steel package, easy to install, enough to replace the import products,80% interior calibration, good stability and repeatability.
Common melt pressure transmitter performance index:
Range: 0—5MPa~ 0—200MPa
Complex accuracy: ±0.25%FS; ±0.5%FS
Output signal:
Transmitter signal: 0~5V; 0~10V; 4-20mA;
Voltage supply: 24VDC (12~36)VDC;
Process connecting: 1/2″-20UNF, M14×1.5, M18×1.5, M22×1.5, G3/4″
available.
Electronic connection: 5 core,6 core, available .
