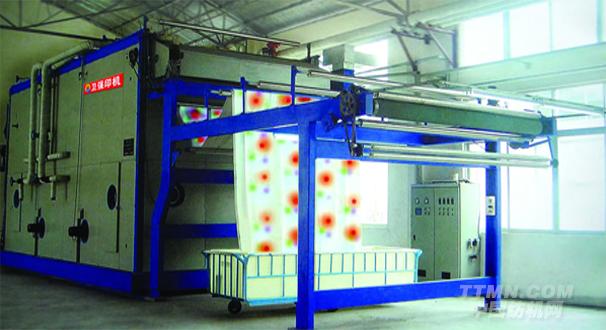

WQ0904長環蒸化機(LO0PSTEAMER)

本機供滌面、純棉、混紡、化纖織物或其他織物印花后的蒸化固色
This range is applied for steaming and color fixing after the fabrics being printing ,such as the fabrics of polyester/cittibmbkebds abd chemical fibre.


(一).主要規格及技術特征：
公稱速度Norminal speed:m/min:30-50;
公稱寬度RollerWidth(mm):1600、1800、2000、2200、2400、2600、2800、3000、3200;
容布量Cloth content(m):140,210,280,350,420
傳動方式Driving system:全機采用交流變頻控制，人機屆面.the speed of this range is regulated by A.C variable frequency motors.
使用壓縮空氣壓力Supplied compressed air pressure(Mpa):0.3-0.5
蒸汽壓力Steam Pressure(Mpa):0.3-0.4
水壓Water pressure(Mpa):0.2-0.3b
飽和蒸汽蒸化溫度Saturated steaming temperature(℃)：101
(二).機器的組成：The Composing of Machine
1.進布架：Fabric entry scattold
2.開幅裝置：Opening apparus way
3.長環蒸化器：Loop ager
  主要包括離心風機，蒸汽箱頭段和尾段以及若干中段(每個中段容布量70m,每中段帶二個循環風機，二個加熱器等)，帶蒸汽加熱的頂，進出布氣風口，帶照明的觀察窗、進布輥、鏈條導軌、掛布輥鏈條、鏈輪、掛布輥、主傳動、空氣含量測試儀、電器柜、帶離合器的出布調速裝置等。
  Mainly include : exhaust fan , entry and exit sections of steamer and Several inter mediate sections .( fabric capacity of each 70m ,with two recirculation fans and tus heating radiators ect .) ,heated roof , entry and exit locks in floor , viewing , windows with lighting fittings , entry roller 、chain guide tracks 、supporting rod chain 、chain wheel 、supporting test instrment、electrical switchgear 、exit roller with clutch 、fabric exit speed regulator with detecting device for fabric capacity ect
4.給濕裝置：Steam humidifier
主要包括離心泵、噴嘴、閥門和管件。溫度波動可控制在2℃。
Manly include: Multievel centrifugal pump , spray nozzle , Valve and pipework. COmpensating temperature fluctuations up to Max 2℃.
5.飽和蒸汽發生器：Steam saturator
6.新空氣補給裝置：Fresh air supplying device
7.一套安裝管件：A set of installation pipework
主要包括帶過濾網的截止閥、減壓閥、汽水分離器等。
Mainly including main stop valve with fiter, reducer valve ,steam And water separator.
8.出布架：Fabric exit scaffold
9.交流電動傳動：Ac motor drive
10.熱油循環系統：Oil circulation heating system
主要包括加熱器及連接管件等。
Mainly including hot heater and seamless tubular steel for concecting.
11.一組溫度調節系統：A set of moisture adjustment system .
