車頭齒輪傳動系統優化設計，配套滴油潤滑裝置。
Optimum design for headstock gear driving system, Equipped guttale-oil-lubricate

超越式級升撐爪機構，不用調換棘輪，管紗成形好，適應高速退繞。全面優化的三自動裝置，動作準確可靠。
A proper body enabling highspeed and small covering area

機器截面優化設計，斷頭率低，產量高，紡紗質量好。
PLC-Controlled main motor with 7_stage conversion speed governing

優良的鋁合金笛管裝置，改善細紗質量，防止刮花。
Main driving system with highstrength looking belt saving energy and reducing noise

吹吸風清潔裝置，紡氨綸包芯紗裝置由用戶選用。
Fully optimized automatic mechanism and frame, and structure making it easy to operate

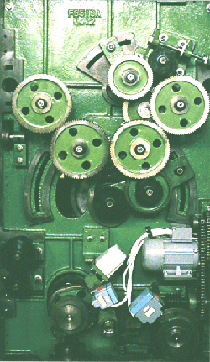

簡潔可靠的傳動車頭
Simple and Reliable Headstock

科學合理的牽伸系統
The rear draft system in reason

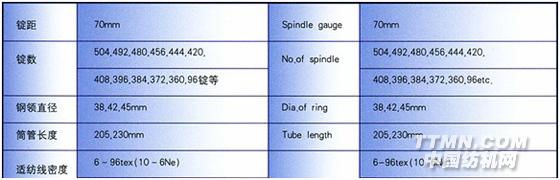

錠鉅

Spindle gauge

70mm

錠數

No. of spindles

420(基本型)

鋼領直徑

Dia of ring

35，38，42，45mm選用

筒管長度

Bobbin length

180，205，230mm選用

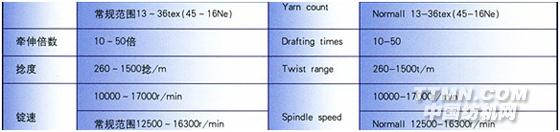

適紡紗線細度

Yarn count

6-96tex（100-6Ne）

牽伸倍數

Draft

10-50倍

捻度

Twist range

200-1300twist/m

錠速

Spindle speed

10000-19000r/min

捻向

Twist

Z或S

粗紗卷裝

Roving package

Φ152×406mm單層四、六列吊錠

變速形式

Mode of speed governing

變頻無極調速，或4/6極電機變速

電機功率

Machine power

17.57KW

機器長度

Machine length

L=2200+(N/2-1)×70mm N-錠數

機器寬度

Machine width

790mm

獨特的車尾設計 Unique Tailstock structure

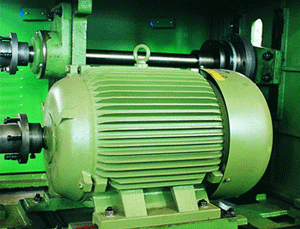

主傳動采用雙速電機，低速啟動后定時切換高速或單速電機，采用變頻調速，供用戶選擇
Main driving adopts double-speed motor Which starts at low speed then switches to high speed automatically after few minutes

主電機布置在吸風機下方，有利于主電機散熱
Main drive motor is positioned in the flow of the exhaust air, the form the motor is extracted simulaneously and the climate condition in the mill is nearly not effected

主傳動作結構合理，調整方便
The structure of Main driving is reasonable, and it is adjusted easily
