公司名稱：江蘇迎陽無紡機械有限公司

產品說明：

用途特點：該機組主要生產高彈噴膠棉、無膠棉。該產品廣泛應用于服裝、床上用品、家具等。
　　噴膠棉干燥機采用前后正反噴膠，六層風道上吹下吸，熱風穿透對流，熱效率高。

主要規格：機 幅：3100mm，3800mm

產品凈寬：2500mm，3200mm

箱體長度：8000mm，10000mm，12000mm

產品規格：60-300g/m2

產 量：100-260kg/h

熱 源：蒸氣、導熱油、直燃式

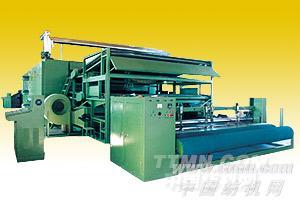

YYBG Spraying collodion and Non-collodion Production Line

Purpose and characteristics: This machine unit mainly produces high-elasticity spraying collodion
　　and non-collodion, which are widely used for garments, bedding and furnitures. The drying machine
　　for spraying collodion, which are widely used for garments, bedding and furnitures. The drying
　　machine for spraying collodion adopts front and back spraying, top-blowing and bottom-suction with
　　6-layer air duct, hot air penetration and convection with high heat efficiency.

Main specifications:

Machine width: 3100mm, 3800mm

Product net width: 2500mm, 3200mm

Chamber length: 8000mm, 10000mm, 12000mm

Product specification: 60-300g/m2

Output volume: 100-260kg/h

Heating source: vapor, heat-conducting oil, and direct ignition
