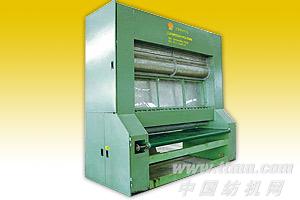

ASBG001 氣壓式自動棉箱

詳細說明：

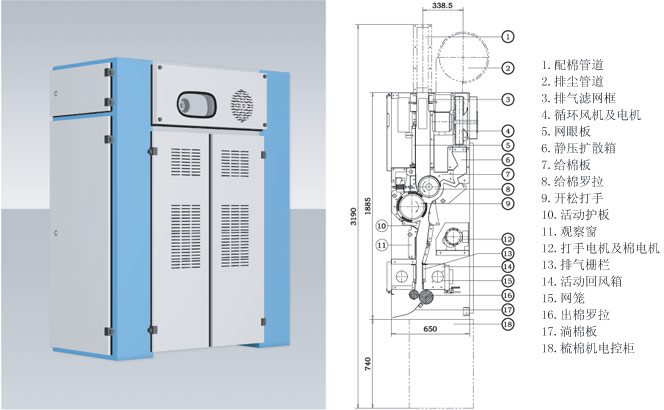

用途：本機是國內最先進的喂棉機構，置于開松機后面，借輸棉風機的作用，將充分開松的纖維均勻填充到本機上棉箱，再經過一對羅拉及打手作用，以及循環風機吹風作用，在下棉箱產生均勻筵棉，再由一對軋輥輸出，供梳理機使用。 主要特征：本機采用SCC控制技術自動控制，結合變頻器達到連續均勻喂棉的效果，并可通過下棉箱吸風口的風門調節來調整橫向均勻度。
技術參數：(Technical parameters) 項目(Item) 參數(Parameters) 產量(output): 50-120kg/h 工作寬度(width of work) : 1500-2500mm 功率(power): 4.4kw 外形尺寸(Size): 1200ⅹ2565ⅹ3480mm
Applications: The machine is the most advanced mechanism of feeder. It is put at the back of opener. Relying on the effect of fan for cotton feeding. it can fill the opened fully fiber to the cotton box.. Then relying on the effect of a pair roller and beater hammer and blowing effect of circle fan, the uniform cotton will be formed at the low cotton box. The uniform cotton is transported through a pair roller and supplied to carding machine for use. Main features: The machine adapts SCC control technique to control automatically. Combined the transducer, the effect of continuous cotton feeding can be got. Meanwhile the transverse evenness can be adjusted through the throttle at the air suction mouth of low cotton box.
