HP2-52C 12G
寧波慈星股份有限公司

中文

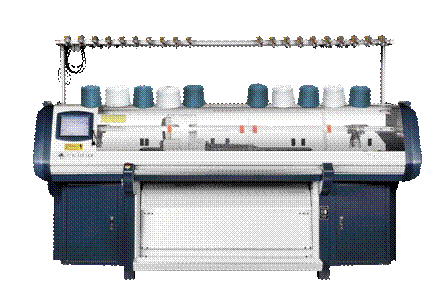

HP2-52C 12G 如圖：

　　單機頭雙系統機型。此機型配備了先進的起底板裝置和切夾紗裝置。通過分段控制，可調節的牽拉轉速，滿足各種不同織物組織的牽拉需求，完成復雜花型的編織工作。
　　配合兩側的切夾紗裝置，有效的減少了紗線的浪費，提高了生產效率。
　　機器具備全新的控制系統，可升級至自動編排32把紗嘴的花型，并同時自動調整這些紗嘴的編織停放位置而不會出現任何問題。
　　系統可以完成在同一行中多把紗嘴的合并編織工作，不但提高了生產效率，而且同時也完成了諸如嵌花和織可穿等復雜花型的編織工作。
　　此機型還具備動態線圈密度功能，可以使密度馬達在花型的同一行編織過程中，調節線圈密度的大小。同時具備的動態機器速度功能，可以機頭在花型的同一行編織過程中改變它的運行速度。這項重要的創新功能，使得生產時間減少了20%。
　　全新的控制系統可以在共用一個服務器的前提下，在各機臺之間建立網絡連接。利用這項功能，我們就可以在機器間進行花型的傳輸和共享，以及查閱各機臺生產控制的數據報告。

機器型型	HP2-52C
針距	12 針
針數/幅寬	624 針/52 英寸
機器速度	1.2米/秒因針數和編織條件而有不同，多段可調節速度，有256段可編程速度。動態機器速度在花型的同一行編織過程中，可改變機器的編織速度。
線圈密度	256段電子控制，采用細分技術;步進馬達控制調節密度。動態線圈密度在花型的同一個系統的編織過程中，可改變線圈的編織密度。線圈編碼器控制系統通過線圈密度的自動調整功能，可大大提高產品質量。通過此項功能，即便使用雙系統編織或是更換不同顏色的紗線，我們都可以做到織物線圈密度始終如一的高品質產品。
搖床	馬達驅動，最大2英寸，于任意位置搖1/2和1/4針。
編織系統	單機頭雙系統。
翻針	可同時前翻后和后翻前，不受機頭方向影響，分針編織.
沉降片	步進電機可調節活動沉降片，可根據不同的織物進行調整，達到多種收針和放針效果。
選針器	8 段電子選針器
起底板裝置	起底板裝置配合切夾紗裝置，起底板的活動釋放功能，使得復合針完成掛紗及脫圈等動作，有效地實現其功能和效果。
牽拉裝置	起底板和羅拉裝置，256段自動控制，分段調節。
送紗裝置	滾筒送紗裝置,精確控制紗線的張力，確保整體織片的質量一致性。
紗嘴	系統可以在每把軌道上自動編排4把紗嘴。共32把紗嘴。自動調整紗嘴位置系統可以在機器上自動調整紗嘴編織時的停放位置。通過此項功能，紗嘴可以時刻緊隨在織物的兩邊而不需做任何復雜的調整。基于這個特性，使我們可以在機器花型參數的調整上節省大量的時間，特別是一些復雜的花型。最優化的機器系統合并功能系統能夠在同一行中完成多把紗嘴的編織工作，不但提高了生產效率，而且同時也完成了諸如嵌花和織可穿等復雜花型的編織工作。
自動停車裝置	斷紗、紗結、卷布、撞針、件數完成、超負荷、程序錯誤等均自動停車。
傳動裝置	皮帶傳動，交流電伺服馬達控制。
安全裝置	全機覆蓋減低噪音和防塵，護蓋附有停車感應器，緊急停車，切斷電源裝置，指示燈。
資料輸入	通過U盤? 電腦連接輸入資料。聯網工作和遙控技術通過共用一個服務器，我們可以在多臺機器之間建立網絡連接。利用這項功能，我們就可以在機器間進行花型的傳輸和共享，以及查閱各機臺生產控制的數據報告。
控制系統	屏幕采用LCD工業顯示器,觸摸屏圖形化界面,傳輸方式采用以及網絡,系統擴展內存達2G,可用時存入大量花型文件,并可根據生產需要隨時調出使用。監控畫面：可顯示各種工作參數和正在編織的度目值，并在機器運轉時隨時進行調整，最大限度方便操作及節約時間。系統同時還具備自動調整紗嘴位置功能，編織系統合并功能，動態線圈密度功能以及動態機器速度等功能。配合全新智能的打版軟件，輕松快捷的完成嵌花、織可穿以及復雜織物組織的生產工作。 ???
機器尺寸及重量	體積：長寬高2963 * 940 * 2010毫米凈重：1225公斤
電源裝置	電壓:AC 220V? 頻率: 50HZ? 功率:1.2KW

英文
HP2-52C 12G
Single carrige and double system models. This model is equipped with advanced devices of yarn cutting and comb. By segment control, adjustable roller speed, to meet a variety of different fabri

c take-down needs, complex patterns of weaving.
work with comb device each other, effectively reducing yarn waste, improve production efficiency.
With new control system, machine can be upgraded to processing 32 yarnfeeders pattern automatically, in every moment, all the yarn carriers close to the fabric, without having any crossing problem.
The machine's systems can work with more yarn-carriers at the same time, this is very important to have higher productivity and allow complicate intarsia and Full-body pattern making.
This machine have the Dynamic Stitch function, allows to modify the stitch tension of the fabric during the same row of pattern and Dynamic Speed function that makes possible the machine carriage speed-changing in the same row of the pattern, this impor

tant innovation reduce the production time up to 20%.
With new control system is possible also interconnection between all the machines, and the connection of the machines with a server. In this way we have the possibility to share the pattern files and visualize a report for the production control.

Machine model	HP2-52C
Gauge	12 gauge
Needles/width	624 needles/52 inch
Machine speed	1.2m/s Needles and knitting for the different conditions, multi-adjustable speed, with 256 programmable speed. Dynamic Speed This function makes possible the machine carriage speed-changing in the same row of the pattern.
Stitch density	256 electronic control, the use of subdivision; stepper motor ad just the density control. Dynamic Stitch This function allows to modify the stitch tension of the fabric during the same row of pattern. Encoder control stitch This function allows increasing the quality of the production with automatic stitch tension adjustment. With this function we can have? a very high quality of the fabrics also with double system production and have the same length of fabrics even if we change the color of the yarn.
Racking	Motor drive, maximum 2-inch, at any location to move1/2 and 1 / 4-needle.
Knitting system	Double system and single carriage
Loop transfer	Front and back transfer at same time, independent of carriage direction, split knitting.
Sinker	Stepper mot or can regulate the activities of sinker can be adjusted according to different fabrics, to release a variety of stitches and needles effect.
Needle selector	8 electronic needle device
Comb device	comb devices and yarn cutting device, release from active principle of comb installations, so that the effective closure of the compound needle hanging off the yarn to achieve its function and effects.
Fabric take-down	Main and auxiliary rollers, comb, 256 automatic control, sub-regulation
Yarn feeding device	Roller yarn feeding device, precise control of the yarn tension, to ensure consistency of the overall quality of fabric.
Yarn feeder	The machine can manage in automatic way 4 yarn feeder for each bar: totally 32 yarn-carriers. Automatic management of Yarn feeder. This automatism allows the managing in automatic way of the position of yarn feeder. In this way we have, in every moment, all the yarn feeder close to the fabric, without having any crossing problem. With this feature we register a big time saving during the setting of the pattern in machine, especially in very complex samples. Optimized management of the machine systems. The machine's systems can work with more yarn feeder at the same time, this is very important to have higher productivity and allow complicate intarsia and full body pattern making.
Automatic stopping	Machine will stop automatically when the yarn broken, yarn knot, fabric roll, need le crash, fabric finished, overload, and program error, etc.
Transmission	Belt drive, AC servo motor control.
Safety devices	Coverage of the whole machine to reduce noise and dust, cover with parking sensors, emergency stop, cut off the power supply unit, the light
Data entry	Input data through the Usb Device Networking and remote control. This function allow the interconnection between all the machines, and the connection of the machines with a server. In this way we have the possibility to share the pattern files and visualize a report for the production control.
Control system	Screen using LCD industrial monitors, touch screen graphical interface, and network transmission using the system of extended memory up to 2G, available files stored in a large number of patterns, and can recall at any time in accordance with production needs.? Monitor screen: You can display various operating parameters and values ??, and adjust at any time during the machine running , to maximize convenience and save time operation. With new function of Automatic management of Yarn feeder, Optimized management of the machine systems, Dynamic Stitch, Dynamic speed and the complete integration with graphic software allow to produce in easy way the most complex structured, intarsia Full body Pattern. ???
Machine size and weight	Size: L * W * H 2963 * 940 * 2010mm Net Weight: 1225kg
Power	Voltage: AC 220V Frequency: 50HZ? -? Power: 1.2KW
