適用范圍

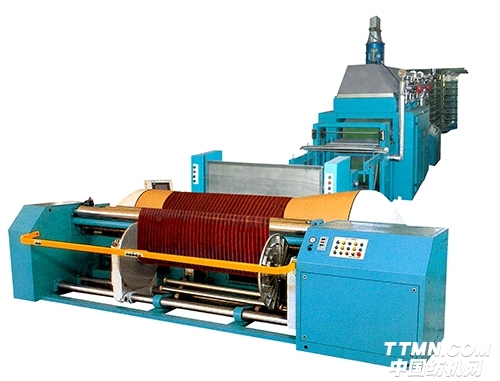

   GA339型系列整漿聯合機是紡織行業中織前準備設備，能滿足毛、棉、麻、混紡等的色織及白胚織物的復雜的上漿工藝要求，結合了分條整經機和漿紗機的優點，將整經和漿紗工序合二為一，直接完成織軸的生產，該機器適宜小批量、多品種的生產，以及碼樣生產和新產品試制開發的漿紗、整經過程。具有紗線覆蓋率底，漿膜完整性好，更換品種快、效率高、品質好，節約原輔材料，減少生產環節，降低生產成本。

   本機對色織、毛麻、絲綢等行業各種原料的紗線從高支高密至低支低密甚至高支低密的特殊要求產品的工藝適應力強，通用性好。該機全電腦控制，設計合理，結構緊湊。技術先進，性能穩定、可靠，是各種劍桿、片梭、噴氣織機的良好配套設備，是替代進口的良好選擇。

   In textile industry，GA339 type warping—sizing combination machine is the facility

for preparation before spinning It can meet the craftwork standa rd in sizing wool，

cotton，hemp，mixed fabric and grey fabric It has both advantages of sectional warping

machine and sizing machine，which makes warping and sizing completed once，and directly accomplish the production of beam GA339is suitabIe fo r smaII quaIity P roduction multiPIicity

production and sample production lt is alsO suitable for the sizing and warping process in new products research It has advantages of low percentage of yarn coverage，good integrity of chorion quick replacement of the older generation products by new ones，high efficiency，good quality，saving raw materials as well as supplemental materials，reducing production cost

GA339 is suitable to size and warp yarns used in color—woven fabric wool fabric silk fabric o r special industry fab ric．despite of the count and density Controlled by computer and structured reasonably the new technology machine is stable and reliable and canmatch with rapier，projectile，air-jet looms，etc.

主要技術特征：

1、微型計算機控制，觸摸式人機介面，技術先進，操作方便，介面友好；

2、機、電、氣、液一體化，技術先進、性能穩定、運行可靠；

3、先進的AC伺服隨動系統，精度高，響應快，偏差小；

4、功能強大的微型計算機系統及先進的控制算法，使整個系統運行平穩、可靠，智能化程度高；

5、先進的AC矢量同步控制系統，同步精度高，響應快，超調小；

6、整經過程中不間斷對各數據進行采樣、分析、運算，使整個系統始終運行在最佳狀態，使經紗成形平整，密度均勻，質量好，倒軸張力穩定均勻；

7、  漿槽采用雙漫雙壓，品種適應性強；

8、氣動加壓，第二壓輥線性加壓，上漿率均勻穩定；

9、漿槽溫度自控，槽體采用雙夾層結構，保溫性好；

1 0、主輔漿槽一體，逆流式循環，保持漿液粘度穩定；

11、采用全烘筒烘燥方式，分兩組溫度自控，效率高，適應性強；

12、烘房泵用積極傳動，方便控制濕區伸長；

1 3、應用氣液增壓鉗式制動，制動效率高。

1 Controlled by microcomputer touch human—computer interface advancedtechnology convenient operation and friendly interface：

2 Mechanical，electronic，gaseous，liquid integration，advanced technology，stable property．reliable running：

3 Advanced AC servo．high precision．quick response．1ittle deviation

4 Powerful function microcomputer system and advanced control methodenables the system running steadilyreliably and having high deg ree of intelligence；

5 Advanced AC vector synchronous controlling system．with high precision．quick response and low overshoot；

6 During warping course，constantly data sampling，analysis，calculation to keep the system in best condition make neat yarn figuration well_distributed

density，good quality，stable and well—distributed beaming tension；

7 Dual—dipping and dual—pressing_mode is applied to slurry tank

8 Pneumatic pressurizing and 2nd roller linear pressurizing ensures uniformstarching.

9 Self-controllable tank tempe ratu re double interlayer Of the tank ensures good insulation.

1 0 Integral main and assistant tank and countercurrent circulation ensures stable slurry viscosity.

1 1 Bake materials with full_enclosed drum It features independent temperature control of two sections．high efficiency and good adaptability

1 2 Active driving used On pump in drying cabinet makes wet area extension more easily

1 3 Applies air—hydraulic supercharging nip brake with high efficiency of braking.

主要技術參數 Main specifications

1．適用范圍：6s一100s純棉紗、滌棉紗、亞麻

2．整經有效幅寬：1800—3200(根據客戶要求）

3．滾筒錐比：1：8

4．盤片直徑：≤1 000(mm)

5．整經速度：2～1 00(米／分)

6．倒軸速度：0～1 00(米／分)

7．倒軸張力：≤6000(N)

8．位移精度：0.001(mm)

9．對條精度：0.01(mm)

10．位移范圍：0.001～9.999(mm)

11．壓漿壓力：0～7.4kN

12．漿槽容積：主漿槽56(L)

              輔漿槽51(L)

13．蒸發能力：180Kg／Hr

   (蒸汽壓力≤0.35Mpa)

14．裝機功率：約40(Kw)

1、Application scope：6s一100s pure cotton yarn，terylene Cotton yarn．flax

2、Work width：1 800—3200 (according to Customer request)

3、Cone angle：1：8

4、Flange diameter：<1 000 (mm)

5、Warping speed：2—1 00 (meter/minute)

6、Beaming speed：0—1 00 (meter／minute)

7、Tension of beaming：<6000 (N)

8、Precision of displacement：0.001 (mm)

9、Paired bar precision：0.01 (mm)

1 0、 Displacement range：0.001—9.999 (mm)

1 1、 Squeezing pressure：0—560(kg)

1 2、Stock rough volume：main stock rough 56(L）  assistant stock rough：51 （L）

1 3、Steam capability：180kg／Hr （vapor pressure≤0.35 Mpa）

1 4、 Installed power：about 40kW

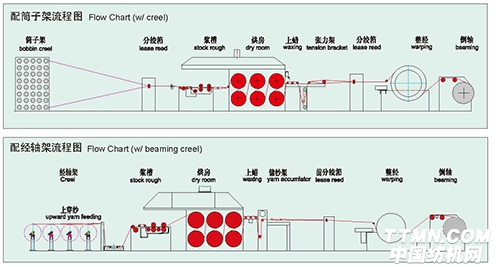

工藝流程示意圖 Technological Flow Sheet
