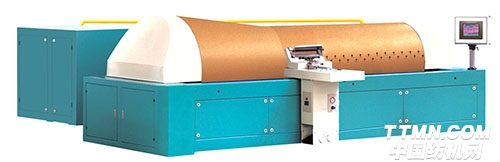

適用于精毛紡織物、化纖長絲織物、色織物、真絲織物及特種產業用紡織品等品種的分條整經?？勺鳛閯U、片梭、噴水、噴氣等無梭織機的織前準備設備，是織造廠開發各種高檔織物、特種織物的優選設備。

This machine is suitable for sectional warping all types of yarns，including worsted yarn，chemical fibre filament and silk It supplies rapier，projectile，water-jet and air-jet weaving machine with high quality weaver’S beams It is excellent in weaving top—g rade fabrics or special—type fabrics。

主要技術特征
1、整經和倒軸傳動由交流變頻控制，恒線速、恒張力、高速度運行。
2、專用機、電、液、氣一體化的油壓裝置產生油壓，推動鉗式制動器，完成整經剎車控制：比例閥控制外鋼帶阻尼方式，實現倒軸張力的自動控制。
3、整經伺服傳動采用雙伺服電機滾珠絲桿結構，響應快，精度高，條定位和起點定位均一次按鍵自動完成。
4、交流數字伺服和滾珠絲桿傳動的整經臺前后移控制、并設有壓紗輥、多種傳感器。
5、整經過程中，整經臺等距離后退。
6、伺服電機通過滾珠絲桿的傳動多次測量整經紗層厚度，實現整經位移參數的自動測量(專利技術)，壓紗輥保證紗層面更加平整。
7、鋼質大滾筒，并經高精度動平衡校驗。
8、采用通訊技術，機、電、氣、液、一體化設計。配置多套PLC、多套交流數字伺服變頻、兩套觸摸屏，系統先進、可靠，自動化程度高。
9、整經主機在地軌上移動，分絞架和筒子架固定，使得條帶相對于分絞架和筒子架中心不變，邊紗張力均勻：
10、移動式倒軸機可與多臺整經機主機配套，電、氣通過插件連接，簡便而可靠：單臺時可固定安裝。
11、配有多種型式的筒子架，錠距、錠數可根據用戶要求選定。
12、備有多種形式張力器、斷經自停裝置供用戶選配。
13、整經臺上配有靜電消除裝置，倒軸機配有上油裝置。

1、Warping and beaming is driven bv A .C. frequency converter so that constant yarn speed and tension is gained even at high speed.
2、The special machine ry—electricity—gas integrated oil pressure equipment can create o_l pressu re and d rive the clamPing breake r to
realize the contro…ng of warp break The proportioning valve contro the damping mode of the outer steel node and realize the automatic control
of the beam tension
3、Warp servo transmission uses the ball bearing lead screw structure and has the characteristic of rapid response．high precision Bar position
setting and initial,potential adiustment will complete automaticallY once button pressing
4、The forward and backward movement of warping table is controlled by AC diaital servo controller and transmission of ball screw rod The
system is also equipped with press roller and several kinds of sensors.
5、The warping table w…be backed for the same distance in the warping procedure.
6、Serve motor w…measure the thickness of warp th read for several times th rough the transmission of the ball bearing lead screw and realize
the automatic measu rement of the warping displacement The application of press roller to keep the flatness of the thread.
7、The steel d rum with fixed cone is precisely checked on inertial balance.
8、Mechatronics and automation is realized with a bus PLCs diaital A C servo controllers microcomputers with TTS(touching sensor screen)
and one long—distance monitor.
9、The warping frame is moved on the rail but the lease reed and creel is fixed so that the position of warp stripe is unchanged and the side
yarn tension is also constant.
1 0、The movable beaming pa rt can match one o r mo re wa rping machine The electrical SOU rce and ai r supply a re connected by the
inserter，simple and reliable.
1 1、Various types of bobbin creel are provided and according to the customer’s request spindle number and space are optional.
1 2、Several types of tension devices and stop motions are provided .
1 3、Static eliminato r is provided in the wa rping table and oiling equipment in the beaming part.

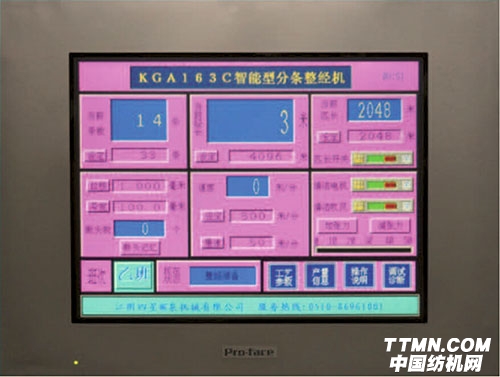

整經顯示屏
Touching display screen
